Single Stage Oil Lubricate Vacuum Pump
SP series vacuum pumps are single stage, direct driven, oil-sealed and air cooled. A rotor with three vanes is positioned inside the pump cylinder supported by two bearings. The pumps have a built-in gas ballast valve and one of the simplest and most reliable oil recirculating system. The oil is pumped into the stator from the oil reservoir for lubrication, sealing and cooling.
Features
- Robust and compact
- High pumping speed even at low pressures
- Gas Ballast valve fitted as standard with easy access
- Exhaust mist filter with built-in bypass valve
- Quiet in operation
- Minimal vibration
- Integral anti-suck back valve
- Less oil consumption
- Air-cooled
- Easy to service
Industry / Markets
- Coating & deposition
- Food processing
- Metallurgy/Furnace
- Power engineering
- Automotive
- Pharmaceutical
- Packaging
- Research & development
- Central vacuum systems
- Laminator
Typical Applications
- Resin infusion (wind shield)
- Job holding (CNC), pick & place (gantry robot)
- Vacuum material conveying (powder transfer)
- Tray drying, roto-cone evaporator
- Agitated thin film dryer (ATFE)
- Transformer/capacitor vapour phase drying (electrical)
- Vacuum filtration (Chemical)
- Solar lamination
- Resin impregnation
- Capsule filling, blister packing (Pharmaceutical)
- Food packaging
Dimensional Details
SP40

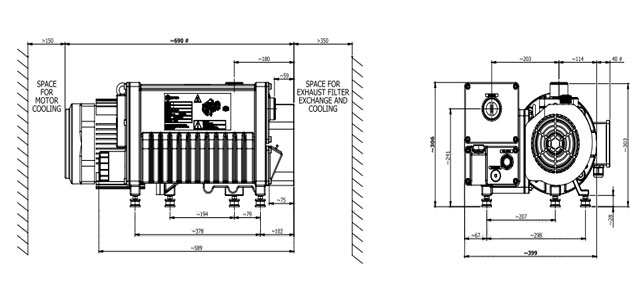

SP65
SP100
SP200

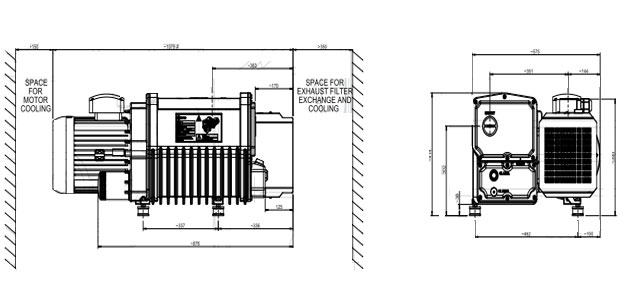

SP300
Technical Specifications
| Particulars | Unit | SP40 | SP65 | SP100 | SP200 | SP300 |
|---|---|---|---|---|---|---|
| Nominal Pumping Speed @ 50Hz | m3 / hr (L / min) | 43 (717) | 65 (1083) | 102 (1700) | 192 (3200) | 300 (5001) |
| Ultimate Vacuum (Total Pressure) | Gas ballast closed in mbar(Torr) | ⋜0.1 (0.07) | ⋜ 0.1 (0.07) | ⋜ 0.1 (0.07) | ⋜ 0.1 (0.07) | ⋜ 0.3 (0.22) |
| Gas ballast open in mbar(Torr) | ⋜1.5 (1.125) | ⋜ 1.5 (1.125) | ⋜ 1.5 (1.125) | NA | NA | |
| Small Gass ballast in mbar(Torr) | NA | NA | NA | ⋜ 0.8 (0.6) | ⋜ 0.8 (0.6) | |
| Standard gas ballast in mbar(Torr) | NA | NA | NA | ⋜ 1.5 (1.125) | ⋜ 1.8 (1.35) | |
| Big gas ballast in mbar(Torr) | NA | NA | NA | ⋜ 2 (1.5) | ⋜ 2.5 (1.87) | |
| Pump Rotational Speed at No-Load @ 50Hz | rmp | 1000 | 1500 | 1500 | 1500 | 1500 |
| Max. Nominal Power Rating @ 50 Hz | kW (HP) | 0.75 (1) | 1.5(2) | 2.2(3) | 3.7(5) | 5.5(7.5) |
| Weight | kg (lb) | 53 | 59 | 90 | 139 | 193 |
| Inlet connection | G 1 1/4" F | G 1 1/4" F | G 1 1/4" F | G 2" F | G 2" F | |
| Outlet connection | G 1 1/4" F | G 1 1/4" F | G 1 1/4" F | G 2" F | G 2" F | |
| Oil capacity | Lts | 1.8 | 1.5 | 2 | 7 | 9 |
| Recommended oil | Standard | IG68 | IG68 | IG68 | IG68 | IG68 |
| Power Supply | 3P 380-440V (50Hz) | 3P 380 - 440V (50Hz) | 3P 380 - 440V (50Hz) | 3P 380 - 440V (50Hz) | 3P 380 - 440V (50Hz) |
